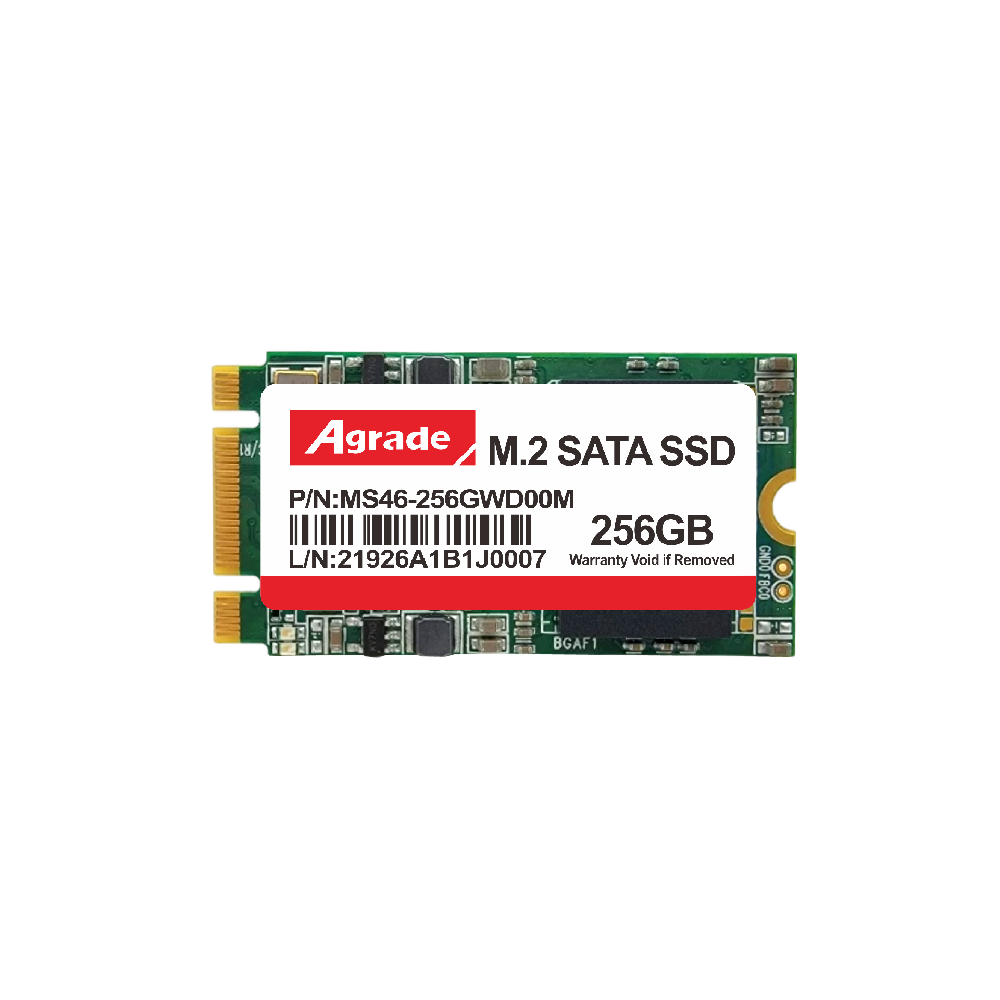

MS46
Description:
Agrade M.2 SATA SSD Module is the storage device based on NAND flash memory technology. This product Compliant with Serial ATA standard interface is suitable for data storage media and code storage device for embedded system and boot disk. Agrade M.2 SATA SSD Modules 2242 with B-M key. By using M.2 SATA SSD Module, it is possible to operate good performance for the systems, which have SATA interface. With small form factor, the applicable appliance can add or install SATA storage device on its Mother Board or Complete set.
Application Fields:
- Netbook, mini PC, mobile PC
- Other machines and Equipments with Serial ATA Interface
Features:
- SATAIII 6.0Gb/S
- Support S.M.A.R.T
- P/E：MLC(3000) 3D TLC(3000)
- Support Low Density Parity Code (LDPC)
- Advance 120bit/2KB Error Correction Code (ECC) engine
Description
| Product Name | Industrial M.2 SATA SSD |
| Series | Hi-Speed Series |
| Model Name | MS46 |
| Capacity | MLC：32GB~512GB
TLC：32GB~512GB |
| Feature
|
SATAIII 6.0Gb/S |
| Support S.M.A.R.T | |
| P/E：MLC(3000) 3D TLC(3000) | |
| Support Low Density Parity Code (LDPC) | |
| Advance 120bit/2KB Error Correction Code (ECC) engine | |
| Shock / Vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Operating Voltage | 3.3V |
| Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
| Storage Temperature | -55℃ ~95℃ |
| Sequential R/W Performance(Max) | Read：500MB/S Write：400M/S |
| Dimension(LxWxH) | 22mm(W)x42mm(L)x3.0mm(H) |
