PS33
Description:

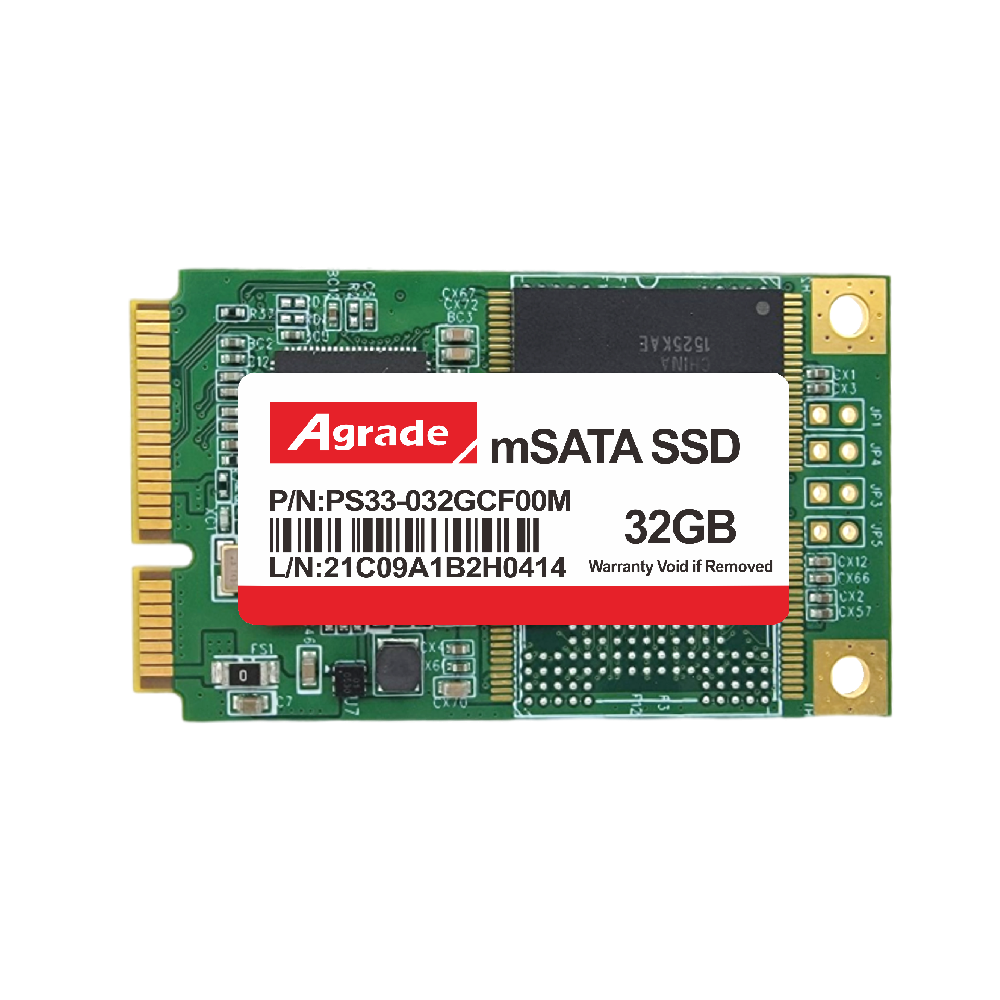

Agrade mSATA SSD is the storage device based on NAND flash memory technology. This product complies with Serial ATA standard interface and suitable for data storage media and code storage device for embedded system and boot disk. By using mSATA SSD Module, it is possible to operate good performance for the systems, which have SATA interface. With small form factor, the applicable appliance can add or install SATA storage device on its Mother Board or Complete set.
Features:
- MO-300A Standard
- P/E：SLC(60000) MLC(3000)
- SATAII 3.0Gb/S
- Advanced Wear Leveling and Error Checking and Correction
- Support S.M.A.R.T
Description
| Product Name | Industrial 2.5’’ SATAIII SSD |
| Series | Hi-Speed Series |
| Model Name | ST60 |
| Capacity | MLC：32GB~2TB
3D TLC: 64GB~2TB |
| Feature
|
Excellent Power Shield function |
| External DRAM | |
| Intelligent destruction function | |
| Physical destruction function | |
| P/E：MLC(3000) 3D TLC(3000) | |
| SATAIII 6.0Gb/S | |
| Advanced Wear Leveling and Error Checking and Correction | |
| Shock / Vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Operating Voltage | 5.0 V |
| Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
| Storage Temperature | -55℃ ~95℃ |
| Sequential R/W Performance(Max) | Read：560MB/S Write: 450MB/S |
| Dimension(LxWxH) | 100mm(L)X69.85mm(W)x7.0mm(H) |
