PS50
Description:

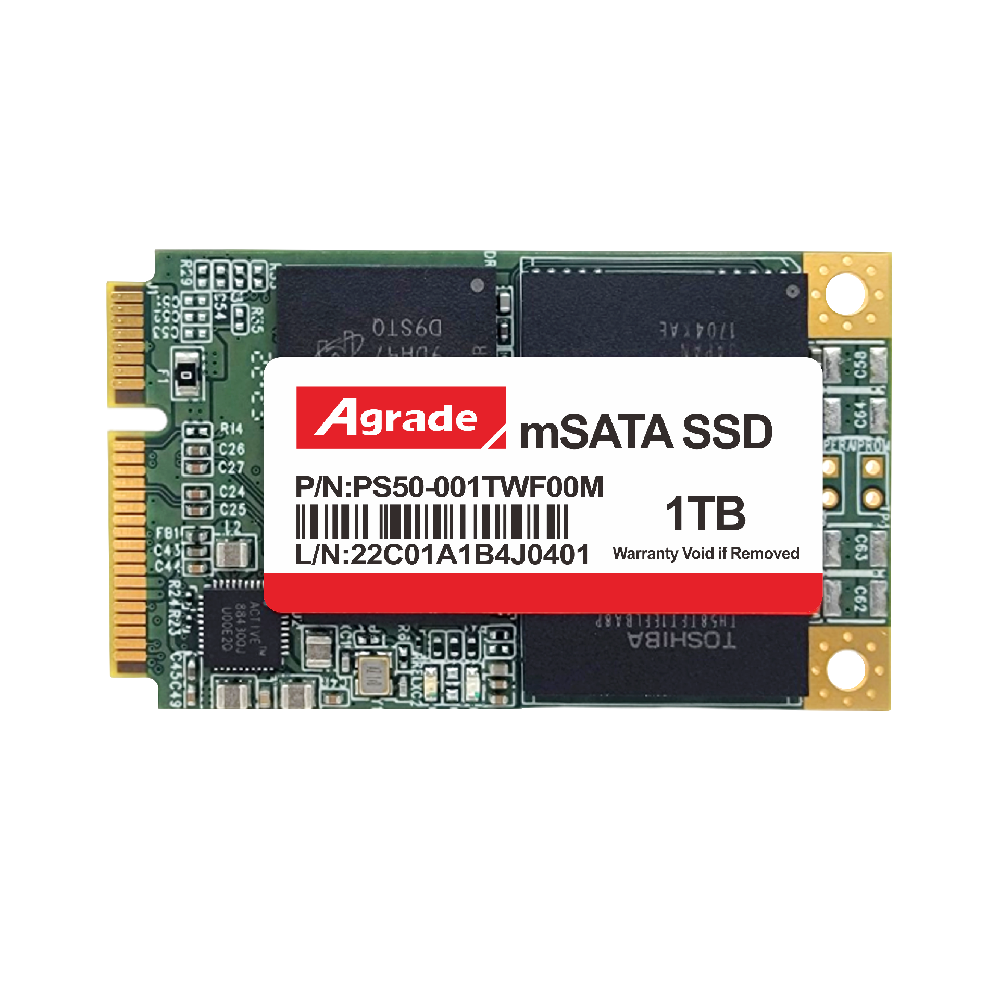

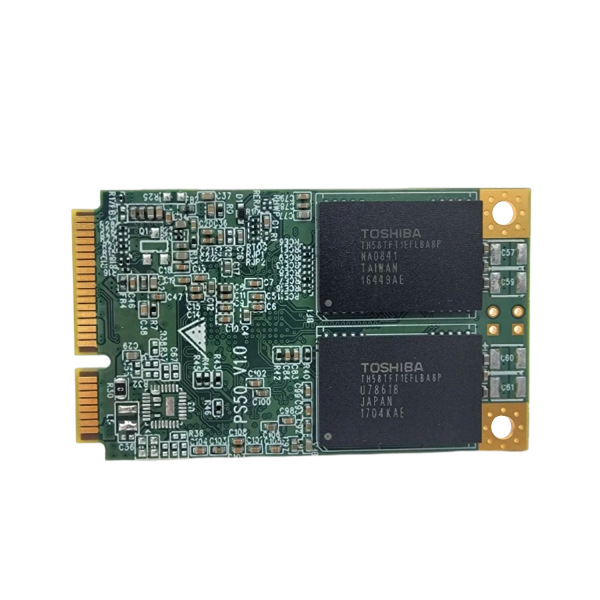

Agrade PS50 mSATA SATAIII SSD is the storage device based on NAND flash memory technology.This product complies with Serial ATA standard interface and suitable for data storage media and code storage device for embedded system and boot disk. By using mSATA SSD Module, it is possible to operate good performance for the systems, which have SATA interface. With small form factor, the applicable appliance can add or install SATA storage device on its Mother Board or Complete set.
Application Fields:
- Netbook, mini PC, mobile PC.
- Other machines and Equipments with Serial ATA Interface.
Features:
- MO-300A Standard
- P/E：SLC(60000) MLC(3000)
- SATAIII 6.0Gb/S
- External DRAM
- Advanced Wear Leveling and Error Checking and Correction
- Support S.M.A.R.T
Description
| Product Name | Industrial mSATA SSD |
| Series | Hi-Speed Series |
| Model Name | PS50 |
| Capacity | SLC：8GB~128GB
MLC: 16GB~1TB |
| Feature
|
MO-300A Standard |
| P/E：SLC(60000) MLC(3000) | |
| SATAIII 6.0Gb/S | |
| External DRAM | |
| Advanced Wear Leveling and Error Checking and Correction | |
| Support S.M.A.R.T | |
| Shock / Vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Operating Voltage | 3.3 V |
| Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
| Storage Temperature | -55℃ ~95℃ |
| Sequential R/W Performance(Max) | Read：520MB/S Write: 410MB/S |
| Dimension(LxWxH) | 50.95mm(L)X30mm(W)x3.9mm(H) |
